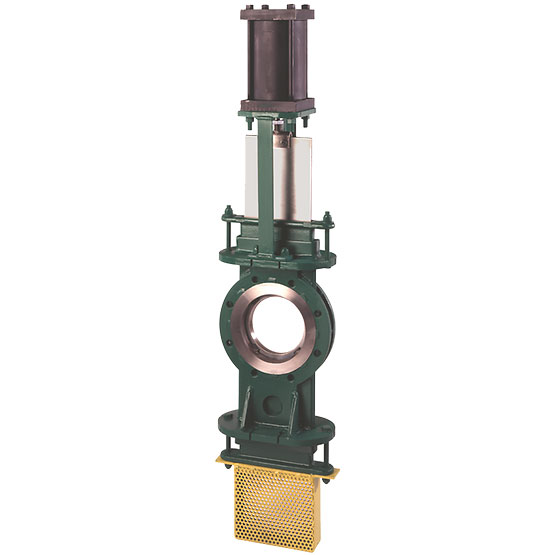

Keystone Keystone Figure F215 Slide Gate Valve

Ideal valve for dense slurry and solids applications and wet or dry abrasives.
Slide through gate design cuts through solids providing consistent operation in the most difficult applications.
O-port style gate fully protects the seat face in open position, giving you longer service life.
Will close through a static column of material.
Fully fabricated from heavy plate and sheet.
Available in 304, 316 and 317L stainless steel wetted parts or custom designed for your needs using a wide variety of materials including
MSS face-to-face standard.
Other special face-to-face dimensions are available.
Precision machined seat with multiple gate guides.
Uni-directional shut-off.
Full operation, leakage and cycling tests.
Certified test reports on request.
