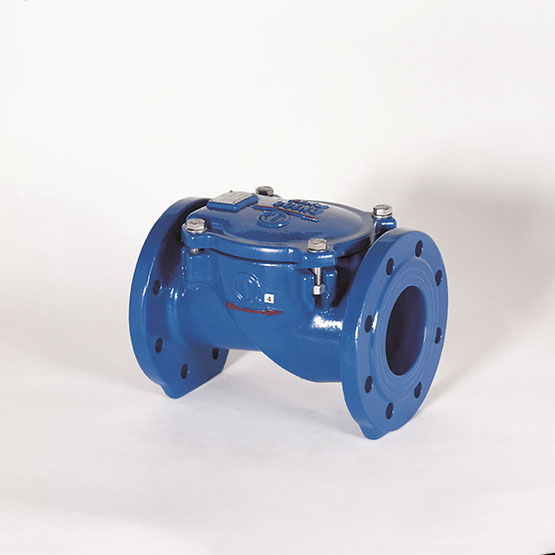

Keystone Figure 87L Swing Check Valves

Keystone Figure 87L Swing Check Valves

The F87L is a resilient seated double flange rubber disc check valve for reliable reverse flow protection in sewage/water applications

Features

  • Double flanged design.
  • The flap is totally encapsulated in NBR rubber for superior sealing and corrosion resistance.
  • The flap rises above the flowpath reducing wear and allows for a flushing action during operation.
  • All iron components are coated in fusion bond epoxy resin.
  • Top entry cover allows for easy access for cleaning and maintenance.
  • Full flow design for less head loss, less debris accumulation and easy maintenance.
  • Lower open pressure and excellent seal performance of low pressure.
  • Simple construction with the flap the only moving part.
  • 45° seat angle reduces flap travel, minimising slamming and resultant pipe damaging water hammer.
  • Accessories including limit switches and backflow actuator.
