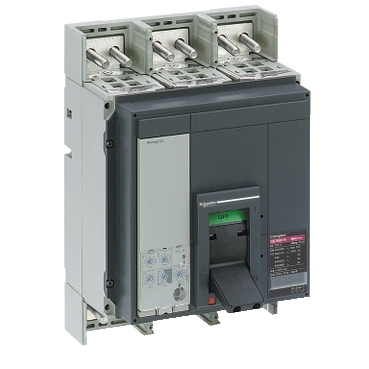

ComPact NS

Molded case circuit breakers (MCCB) to protect lines up to 3200 A

Features

ComPact NS molded case circuit breakers (MCCB) are equipped with MicroLogic control units that offer built-in power and energy metering in addition to electrical measurement and analysis functions. The solution can be used to ensure a source changeover switch function (TransferPact). It also can evolve with your installation with interchangeable trip units that combine protection and measurement, as well as standardized accessories.

Specifications

  • Flexible installation: any position, switchboard or wall-mounted
  • Nominal current: 630 to 3200 A
  • Breaking capacities for the 2 sizes of circuit breakers:
    – up to 1600 A: 50, 70, 150, 200 kA at 415 V
    – up to 3200 A: 70 & 85 kA at 415 V
  • 3 and 4 pole versions available
  • Manual and remote operation
  • Fixed and withdrawable versions
  • Switch disconnector version available
  • Embedded earth leakage protection (ELCB)
  • Optimized range of auxiliaries and accessories; field installable
